InterActive Dance Floor™

HyperActive Dance Floor™

Psychedelic Dance Floor™

InterActive Dance Floor

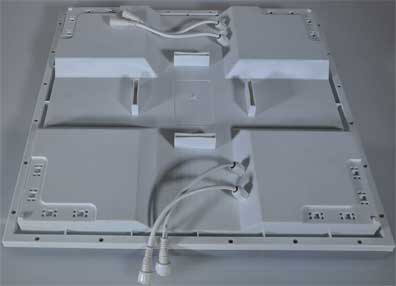

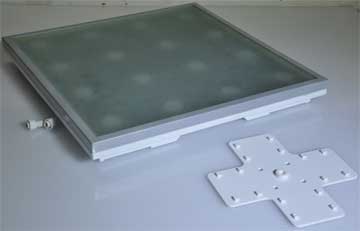

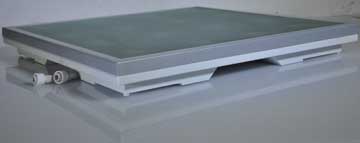

There are three models for dance floor panels. The surface for each model is covered by a 0.39" (10 mm) toughened glass. The edges of DF192 is protected by an aluminum framed. The base of this model is made of ABS plastic, which makes it ideal for temporary and rental applications. DF 64 and 144 are intended for permanent installations.

SPECIFICATIONS	DF 192	DF 64	DF 144
Size	19.7" x 19.7" x 2.3"	19.7" x 19.7" x 2"	19.7" x 19.7" x 2"
Size	50 x 50 x 5.8 cm	50 x 50 x 5 cm	50 x 50 x 5 cm
Area	0.25 Sq. Meter	0.25 Sq. Meter	0.25 Sq. Meter
Area	2.69 Sq. Feet	2.69 Sq. Feet	2.69 Sq. Feet
Weight	19 lb / 8.6 kg	28.7 lb / 13 kg	28.7 lb / 13 kg
Load Capacity	661 lb / 300 kg	661 lb / 300 kg	661 lb / 300 kg
LEDs	64 R; 64 G; 64 B in a 4 x 4 cluster	64, 3-in-1 RGB in a 8 x 8 cluster	144, 3-in-1 RGB in a 12 x 12 cluster
Input Voltage	110 - 240 V	110 - 240 V	110 - 240 V
Power Consumption	16 W	20 W	25 W
IP Protection	64	55	55

DF 192 DF 64 DF 144

DF 144 without Software
