DPIII Series Digital Speaker







Features

  • 192KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A converter.

  • USB and RS485 connectors present. 250qty of these devices can be connected together via RS485 and controlled remotely as far away as 1500 meters.

  • All functions can be controlled via front-panels directly.

  • 30 program variables can be stored into the device.

  • Units parameters can be locked with a password option (in order to avoid unwanted parameter changes).

  • Each input & output channel comes with 6-bands of independent parametric EQ. Gain is adjustable from -60dB to +12dB. In addition, EQs for all output channels can be chosen as lo-shelf or hi-shelf

  • Input channels come with 6-bands of independent parametric EQ. Output channels also come with 15-bands of individual parametric EQ.

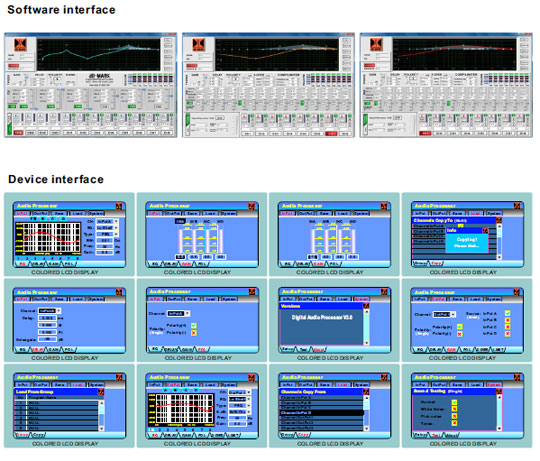

  • Includes a 4.3” full color LCD with 480x272 pixels of RGB.

  • 13-Bands of digital LED level meters can show the status of input, output, mute and edits.

  • Compensation-delay, phase-control and mute settings are present for each input and output channels. The compensation (and offers a maximum length of 1000ms). For that delay, milliseconds, meter and feet all can be displayed together.

  • Input channels : Gain, noise gate, compensation, polarity and parametric EQ.

  • Output channels: Gain, delay, polarity, crossover, compressor/limiter, matrix and parametric EQ.

  • Signal generator included (pink noise, white noise, etc).

  • Master security password function included.

  • Matrix and muting in all channels can be controlled by a used mixer to this device via USB and RS485.



Specifications

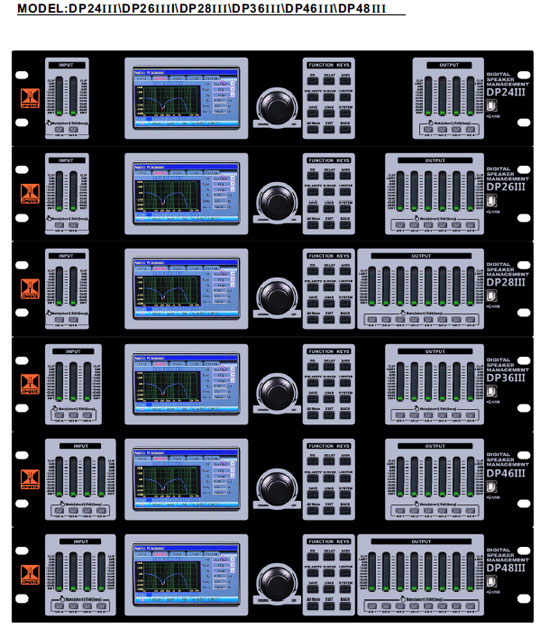

MODEL

DP24III

DP26III

DP28III

DP36III

DP46III

DP48III

Input Channel & Socket

2CHs, Female XLR

2CHs, Female XLR

2CHs, Female XLR

3CHs, Female XLR

4CHs, Female XLR

4CHs, Female XLR

Output Channel & Socket

4 CHs, Male XLR

6 CHs, Male XLR

8 CHs, Male XLR

6 CHs, Male XLR

6 CHs, Male XLR

8 CHs, Male XLR

Input Impedance

Balance:20KΩ

Output Impedance

Balance:100Ω

PC Com Port

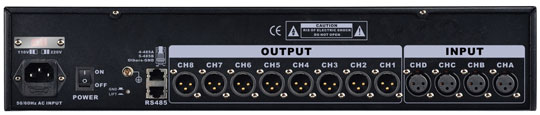

1 USB Com Port on front panel, 2 RS485 Com Port on back panel(RJ-45)

CMRR

>70dB(1KHz)

Input Range

≤+25dBu

Frequency Response

20Hz-20KHz(-0.5dB)

S/N

>110dB

THD

<0.01% OUTPUT=0dBu/1KHz

Crosstalk of Channels

>80dB(1KHz)

Functions of Input Channels



Input Mute

Each channel has Independent Mute Control

Input Delay

Each channel has Independent Delay Control Range:0—1000ms  stepover 21us@<10ms; stepover 84us@10-20ms; stepover:0.5ms@>20ms

Input Polarity

Same Phase + or reversed Phase -

Input EQ

Each Input Channel has 6 Bands Parametric EQ Central Frequency Point:20Hz-20KHz, 239 frequency points totally Band Width:0.01oct-3oct, stepover is 0.01oct Gain:-20dB-+20dB, stepover is 0.1dB Default Frequency Point :Lo-shelf 20Hz, GEQ2 80Hz,GEQ3 317Hz, GEQ4 1092Hz,GEQ5 5024Hz, Ho-shelf 20000Hz

Input Gain

Each Channel has independent Gain Control from -60dB to +12dB

Functions of Output Channels



Output Mute

Each channel has Independent Mute Control

Input Selection

Each Output Channel can choose any Input Channel or group

Input Selection

Adjustable Range:-60dB-+12dB ,stepover 0.1dB

Output Delay

Each channel has Independent Delay Control Range:0—1000ms stepover 21us@<10ms; stepover 84us@10-20ms; stepover:0.5ms@>20ms

Output Polarity

Same Phase + or reversed Phase -

Crossover Setting up

Each Channel can be set up LPF and HPF independently. Adjustable Parameters: Filter Types (Linkwitz-Riley/Besse/Butterworth )Frequency Turning Point:20Hz-20KHz, 239 Frequency Points Decay of Slope:12dB/oct, 18dB/oct, 24dB/oct,48dB/oct

Limiter Setting up

Each Channel can be set up limiter independently. Adjustable Parameters: Threshold Value:-20dBu-+20dBu Stepover:0.5dBu@starting time:0.3ms-100ms Stepover<1ms @0.1ms, Stepover>1ms@1ms

Output EQ

Each Output Channel can be set up 15 Bands EQ. Both EQ Modes, PEQ & GEQ, are available. When set as PEQ , the adjustable parameters :LO-EQ1 ( bass boost or low cut), H1-EQ15 (High Boost or High Damp ) are the Frequency Points adjustable Filiter, S-dB can choose 6dB/oct or 12dB/oct Gain:-40dB-+20dB ,Stepover:0.1dB,others are 13Bands Parametric EQ. Central Frequency Point:20Hz-20KHz, 239 frequency points totally. Band Width:0.01oct-3oct, stepover is 0.01oct When set as GEQ, the functions are the same as when set as PEQ. Only the Frequency

Output Gain

Each Channel has independent Gain Control from -60dB to +12dB

Processor

192KHz Sampling Frequency, 32-bit DSP Processor, 32-bit A/D and D/A converter.

Display

4.3” Color Liquid Crystal Display ,480*272 pcs of RGB Pixels

Power Consumption

≤30W

Power

AC 110V/220V 50Hz/60Hz

Product Dimension( W×D×H)

482X232X88mm

Net Weight

5.5(kg)

Shipping Dimension (W×D×H)

1PC:562X362X152mm/0.0309m3 4PCS:575X375X608mm/0.1311m3

Gross Weight

1PC:6.8(kg) 4PCS:28.8(kg)
