Line Source 300

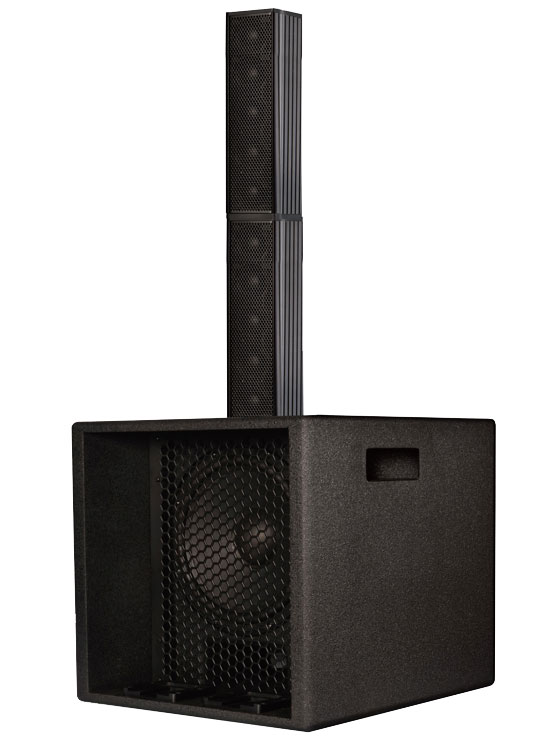

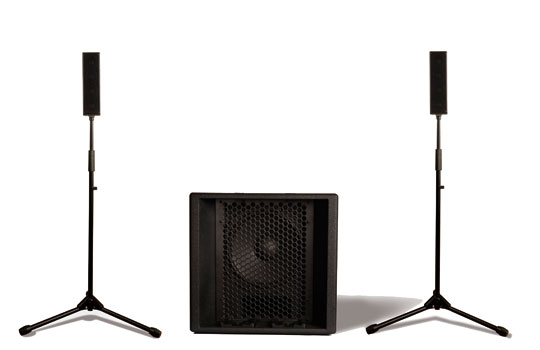

The mid and high aluminum cabinets of this German-designed system can be stacked on top of the subwoofer, or be placed away from the subwoofer, on speaker stands or mounted on a wall. While the system's subwoofer that is made with birch plywood is only 10", the continues power rating of it is 240 Watts at 90 dB SPL (480 Watts peak, at 110 dB). The column speakers are made with four, 2" drivers and a high frequency 1" dome tweeter, delivering 60 Watts of peak power at 88 dB (104 dB maximum SPL). This active system with a Class-D amplifier has pre-set equalizations. However, DSP input allows the use of its software to optimize the sound with an 8-channel parametric equalizer. The housing is available in black and white.



Specifications



Frequency Range(-10 dB) :

45Hz ~ 1 kHz (Subwoofer)

Frequency Response(±3 dB) :

55Hz ~ 600Hz

Frequency Range(-10 dB) :

100Hz ~ 20 kHz (Satellite)

Frequency Response(±3 dB) :

200Hz ~ 20 kHz(Satellite)

Power Rating :

(Continuous / Peak ) 240W / 480W

Maximum dB:

(Continuous / Peak ) 120dB / 123dB

System Sensitivity (1W @ 1m):

90dB Subwoofer

LF Driver:

10” paper cone / Foam edge

Nominal Impedance:

8 ohm sub / 8 ohm AM340R2 Subwoofer

Enclosure:

Britch plywood

Mounting:

Top-mounted socket for optional aluminum adapter installation

Transport:

2x; Embedded on the case

Finish:

Water-borne sand texture paint

Grille:

Black powered coating with hexagon

performated steel

Sub I/O Connectors:

2x , Balanced / TS combo input

1x , XLR / TS input(Aux / MIC )

2x , RCA input ( Left / Right )

2x , 1/4” TS housing output

2x , SpeakOn output

Dimensions (H x W x D):

403.5 mm x 400.0 mm x 450.0 mm

16 in x 15.8 in x 17.8 in

Satellite Speaker Weight:

Subwoofer Weight:

Total Net Weight:

1.7kg (3.74 lb) unit

20.3kg (44.71 lb)

23.7kg (52.2 lb)

Optional Accessories:

JS adjustable speaker stander

Speaker cable with speakon terminal
